PEEK MATERIALS
Polyetheretherketone (PEEK) - TECAPEEK natural is a high-performance, high temperature, semi crystalline thermoplastic manufactured by Ensinger and may use Victrex® PEEK 450 or Syensqo‘s KetaSpire® KT-820 (formerly Solvay) polymer. The most well known and important member of the polyaryletherketone group combines excellent wear, and very good mechanical properties, even under thermal load. Outstanding chemical resistance and a high operating temperature (up to 260°C) round out its profile, and make TECAPEEK an almost universally appropriate material for highly stressed parts.

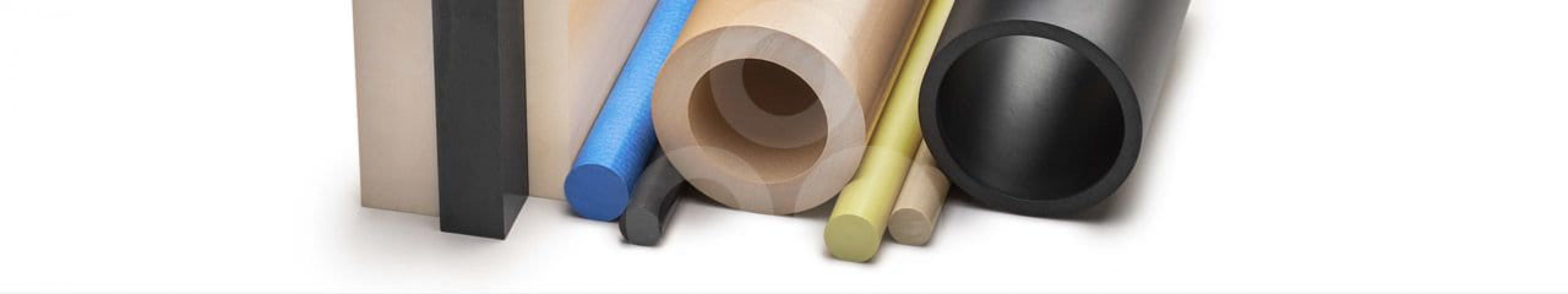

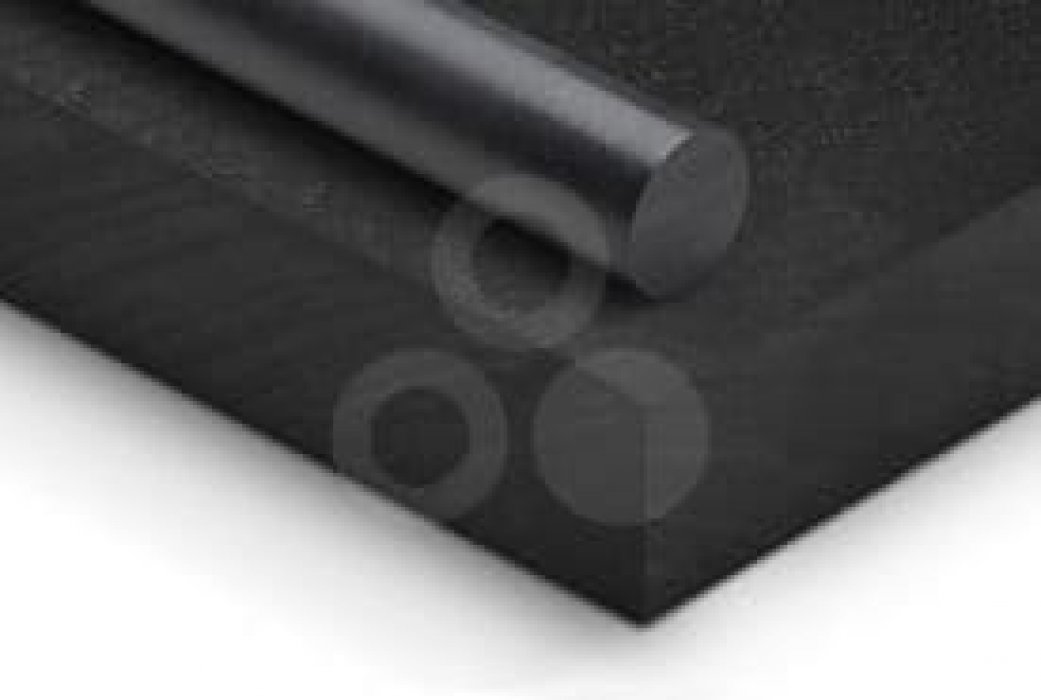

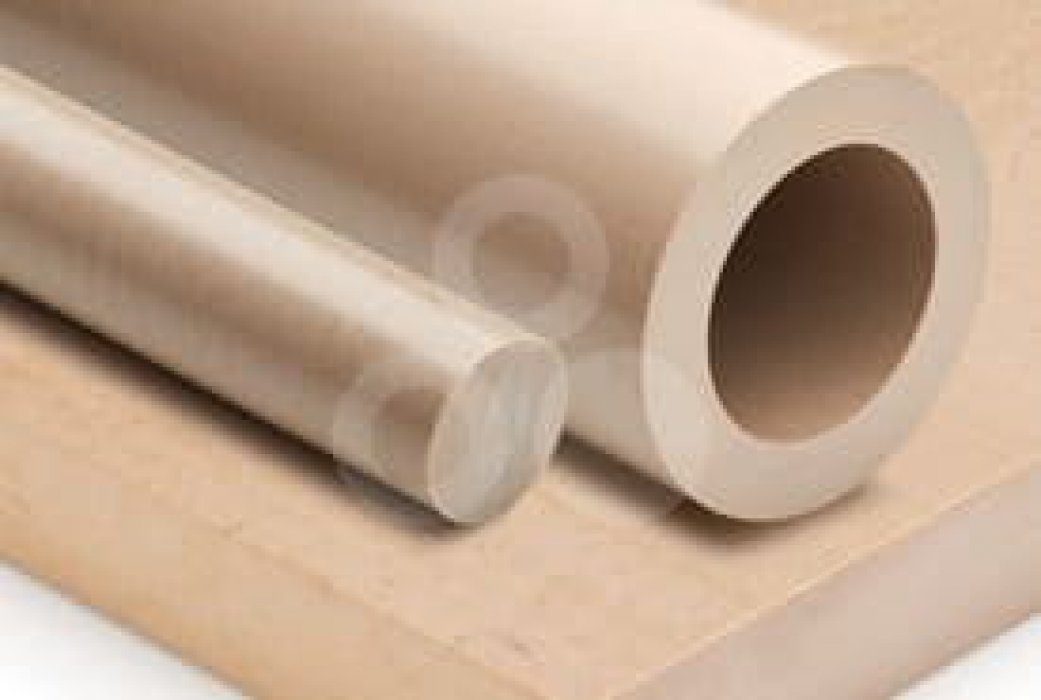

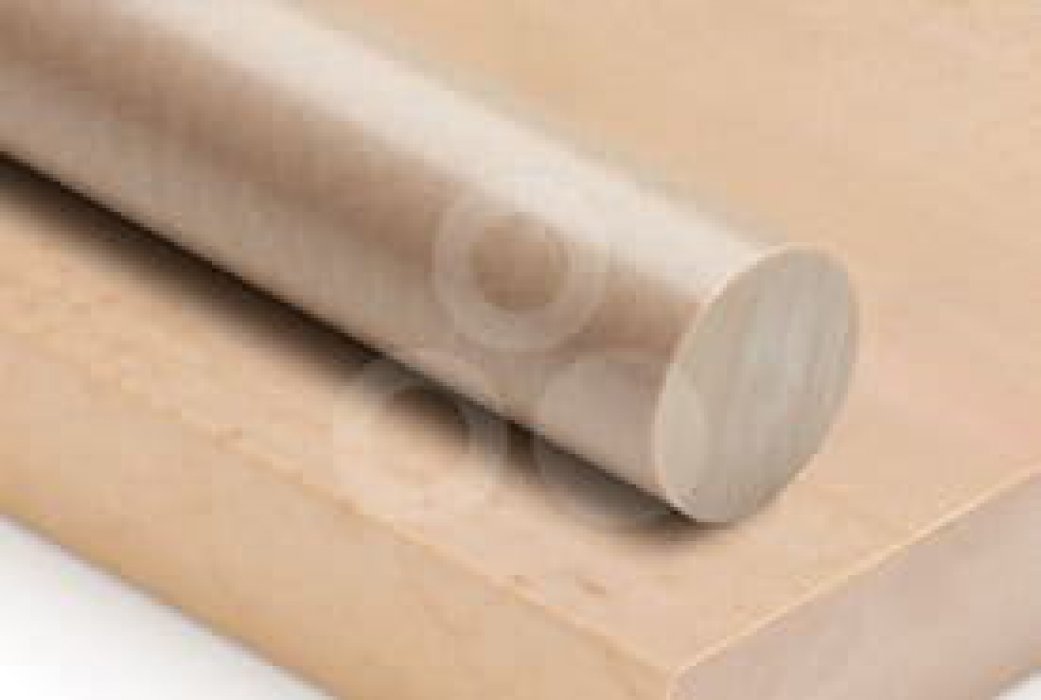

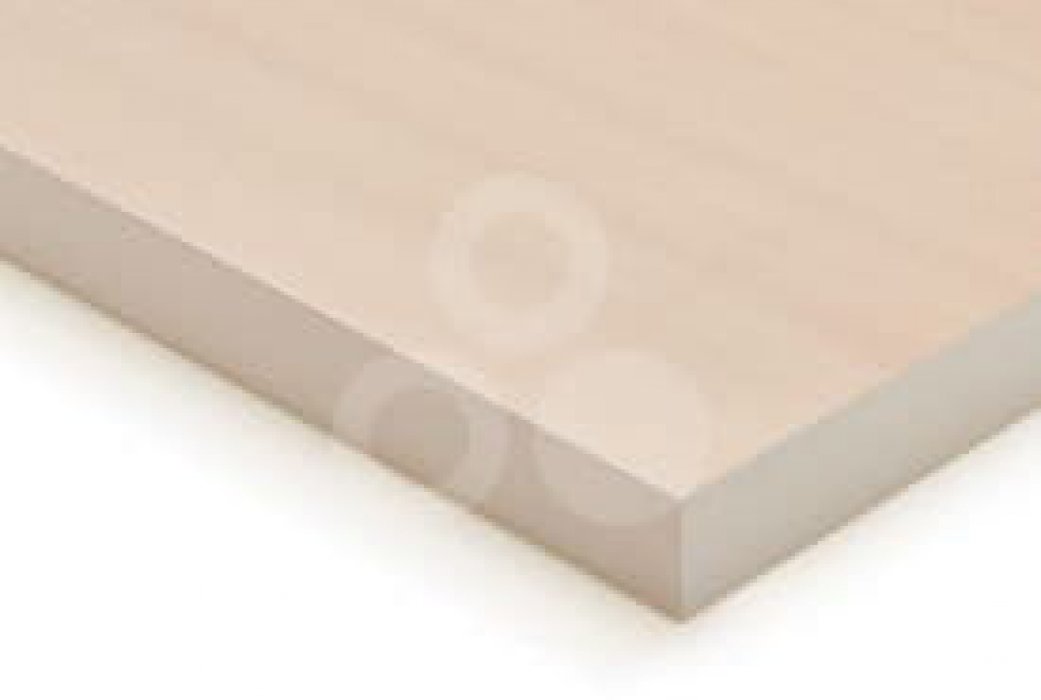

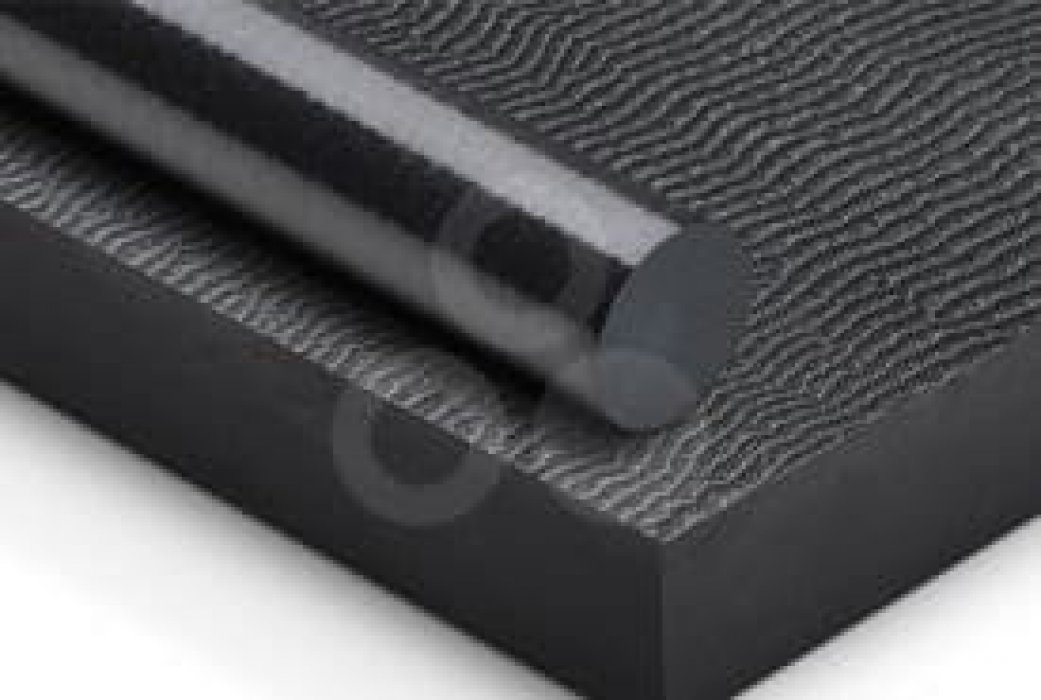

Its excellent dimensional stability combined with high creep stability, supports the suitability of PEEK for the most sophisticated machined parts. Ensinger manufactures PEEK plastics in various shapes such as PEEK rod, PEEK plate and PEEK tube.
As with all Ensinger PEEK materials, we can confirm that TECAPEEK natural meets the limitations imposed by RoHS Directive 2011/65/EU Restriction of Hazardous Substances in electrical and electronic equipment.
COMPLIANCES
| VALUE | UNIT | PARAMETER | NORM | |
|---|---|---|---|---|
| Modulus of elasticity (tensile test) |
4200 | MPa | 1mm/min | DIN EN ISO 527-2 |
| Tensile strength | 116 | MPa | 50mm/min | DIN EN ISO 527-2 |
| Tensile strength at yield | 116 | MPa | 50mm/min | DIN EN ISO 527-2 |
| Elongation at yield (tensile test) | 5 | % | 50mm/min | DIN EN ISO 527-2 |
| Elongation at break (tensile test) | 15 | % | 50mm/min | DIN EN ISO 527-2 |
| Flexural strength | 175 | MPa | 2mm/min, 10 N | DIN EN ISO 178 |
| Modulus of elasticity (flexural test) |
4200 | MPa | 2mm/min, 10 N | DIN EN ISO 178 |
| Compression modulus | 3400 | MPa | 5mm/min, 10 N | EN ISO 604 |
| Compression strength | 23/43/102 | MPa | 1% / 2% / 5% | EN ISO 604 |
| Impact strength (Charpy) | n.b. | kJ/m2 | max. 7,5J | DIN EN ISO 179-1eU |
| Notched impact strength (Charpy) | 4 | kJ/m2 | max. 7,5J | DIN EN ISO 179-1eA |
| Shore hardness | 89 | D |
We can process and shape PEEK materials according to customer requests add add value to their production
